flute-transmitter.cpp File Reference

#include <cstdio>
#include <iostream>
#include <argp.h>
#include <cstdlib>
#include <fstream>
#include <string>
#include <filesystem>
#include <libconfig.h++>
#include <boost/asio.hpp>
#include "spdlog/async.h"
#include "spdlog/spdlog.h"
#include "spdlog/sinks/syslog_sink.h"
#include "Transmitter.h"

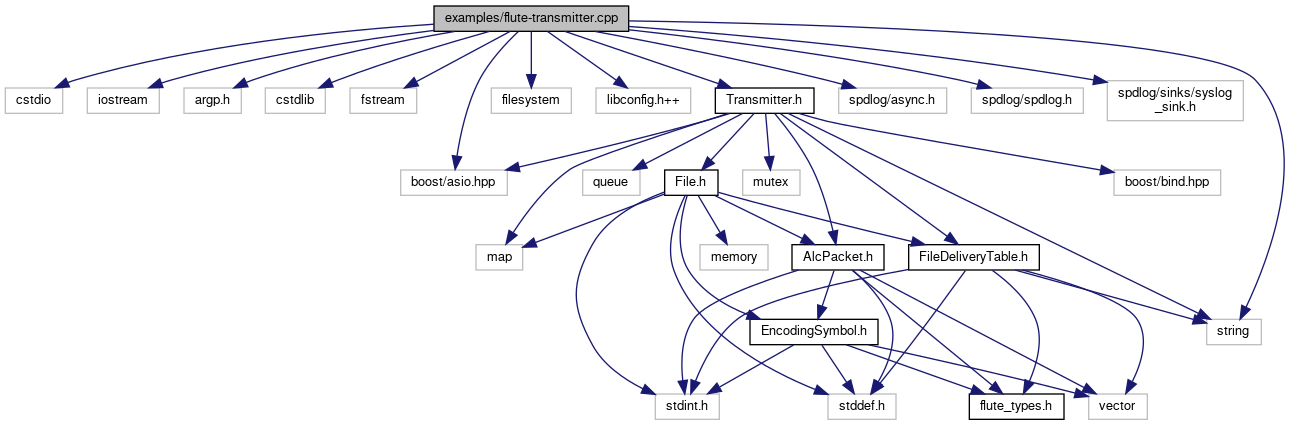

Include dependency graph for flute-transmitter.cpp:

Go to the source code of this file.

Classes
struct	ft_arguments
	Holds all options passed on the command line. More...

Functions
static void	print_version (FILE *stream, struct argp_state *)
	Print the program version in MAJOR.MINOR.PATCH format. More...
static auto	parse_opt (int key, char *arg, struct argp_state *state) -> error_t
	Parses the command line options into the arguments struct. More...
auto	main (int argc, char **argv) -> int
	Main entry point for the program. More...

Variables
void(*	argp_program_version_hook )(FILE *, struct argp_state *) = print_version
const char *	argp_program_bug_address = "Austrian Broadcasting Services <obeca@ors.at>"
static char	doc [] = "FLUTE/ALC transmitter demo"
static struct argp_option	options []
static char	args_doc [] = "[FILE...]"
static struct argp	argp

Function Documentation

main()

auto main	(	int	argc,
		char **	argv
	)		-> int

Main entry point for the program.

Parameters

argc	Command line agument count
argv	Command line arguments

Returns

0 on clean exit, -1 on failure

Definition at line 117 of file flute-transmitter.cpp.

                                        {
  struct ft_arguments arguments;
  /* Default values */
  arguments.mcast_target = "238.1.1.95";

  argp_parse(&argp, argc, argv, 0, nullptr, &arguments);

  // Set up logging
  std::string ident = "flute-transmitter";
  auto syslog_logger = spdlog::syslog_logger_mt("syslog", ident, LOG_PID | LOG_PERROR | LOG_CONS );

  spdlog::set_level(
      static_cast<spdlog::level::level_enum>(arguments.log_level));
  spdlog::set_pattern("[%H:%M:%S.%f %z] [%^%l%$] [thr %t] %v");

  spdlog::set_default_logger(syslog_logger);
  spdlog::info("FLUTE transmitter demo starting up");


  // We're responsible for buffer management, so create a vector of structs that
  // are going to hold the data buffers
  struct FsFile {
    std::string location;
    char* buffer;
    size_t len;
    uint32_t toi;
  };
  std::vector<FsFile> files;

  // read the file contents into the buffers
  for (int j = 0; arguments.files[j]; j++) {
    std::string location = arguments.files[j];
    std::ifstream file(arguments.files[j], std::ios::binary | std::ios::ate);
    std::streamsize size = file.tellg();
    file.seekg(0, std::ios::beg);

    char* buffer = (char*)malloc(size);
    file.read(buffer, size);
    files.push_back(FsFile{ arguments.files[j], buffer, (size_t)size});
  }

  // Create a Boost io_service
  boost::asio::io_service io;

  // Construct the transmitter class
  LibFlute::Transmitter transmitter(
      arguments.mcast_target,
      arguments.mcast_port,
      0,
      arguments.mtu,
      arguments.rate_limit,
      io);

  // Configure IPSEC ESP, if enabled
  if (arguments.enable_ipsec)
  {
    transmitter.enable_ipsec(1, arguments.aes_key);
  }

  // Register a completion callback
  transmitter.register_completion_callback(
      [&files](uint32_t toi) {
        for (auto& file : files) {
          if (file.toi == toi) {
            spdlog::info("{} (TOI {}) has been transmitted",
              file.location, file.toi);
            // could free() the buffer here
          }
        }
      });

  // Queue all the files
  for (auto& file : files) {
    file.toi = transmitter.send( file.location,
        "application/octet-stream",
        transmitter.seconds_since_epoch() + 60, // 1 minute from now
        file.buffer,
        file.len
        );
    spdlog::info("Queued {} ({} bytes) for transmission, TOI is {}",
        file.location, file.len, file.toi);
  }

  // Start the io_service, and thus sending data
  io.run();

exit:
  return 0;
}

parse_opt()

static auto parse_opt ( int  key, char *  arg, struct argp_state *  state  ) -> error_t

static

Parses the command line options into the arguments struct.

Definition at line 63 of file flute-transmitter.cpp.

                                                                               {
  auto arguments = static_cast<struct ft_arguments *>(state->input);
  switch (key) {
    case 'm':
      arguments->mcast_target = arg;
      break;
    case 'k':
      arguments->aes_key = arg;
      arguments->enable_ipsec = true;
      break;
    case 'p':
      arguments->mcast_port = static_cast<unsigned short>(strtoul(arg, nullptr, 10));
      break;
    case 't':
      arguments->mtu = static_cast<unsigned short>(strtoul(arg, nullptr, 10));
      break;
    case 'r':
      arguments->rate_limit = static_cast<uint32_t>(strtoul(arg, nullptr, 10));
      break;
    case 'l':
      arguments->log_level = static_cast<unsigned>(strtoul(arg, nullptr, 10));
      break;
    case ARGP_KEY_NO_ARGS:
      argp_usage (state);
    case ARGP_KEY_ARG:
      arguments->files = &state->argv[state->next-1];
      state->next = state->argc;
      break;
    default:
      return ARGP_ERR_UNKNOWN;
  }
  return 0;
}

print_version()

void print_version ( FILE *  stream, struct argp_state *  state  )

static

Print the program version in MAJOR.MINOR.PATCH format.

Definition at line 104 of file flute-transmitter.cpp.

                                                        {
  fprintf(stream, "1.0.0\n");
}

Variable Documentation

argp

struct argp argp

static

Initial value:

= {options, parse_opt, args_doc, doc,
                           nullptr, nullptr,   nullptr}

Definition at line 97 of file flute-transmitter.cpp.

argp_program_bug_address

const char* argp_program_bug_address = "Austrian Broadcasting Services <obeca@ors.at>"

Definition at line 31 of file flute-transmitter.cpp.

argp_program_version_hook

void(* argp_program_version_hook) (FILE *, struct argp_state *)	(	FILE *	,
		struct argp_state *
	)		= print_version

Definition at line 30 of file flute-transmitter.cpp.

args_doc

char args_doc[] = "[FILE...]"

static

Definition at line 97 of file flute-transmitter.cpp.

doc

char doc[] = "FLUTE/ALC transmitter demo"

static

Definition at line 32 of file flute-transmitter.cpp.

options

struct argp_option options[]

static

Initial value:

= {
    {"target", 'm', "IP", 0, "Target multicast address (default: 238.1.1.95)", 0},
    {"port", 'p', "PORT", 0, "Target port (default: 40085)", 0},
    {"mtu", 't', "BYTES", 0, "Path MTU to size ALC packets for (default: 1500)", 0},
    {"rate-limit", 'r', "KBPS", 0, "Transmit rate limit (kbps), 0 = no limit, default: 1000 (1 Mbps)", 0},
    {"ipsec-key", 'k', "KEY", 0, "To enable IPSec/ESP encryption of packets, provide a hex-encoded AES key here", 0},
    {"log-level", 'l', "LEVEL", 0,
     "Log verbosity: 0 = trace, 1 = debug, 2 = info, 3 = warn, 4 = error, 5 = "
     "critical, 6 = none. Default: 2.",
     0},
    {nullptr, 0, nullptr, 0, nullptr, 0}}

Definition at line 32 of file flute-transmitter.cpp.
