main.cpp File Reference

Contains the program entry point, command line parameter handling, and the main runloop for data processing. More...

#include <argp.h>
#include <cstdlib>
#include <libconfig.h++>
#include "CasFrameProcessor.h"
#include "Gw.h"
#include "LimeSdrReader.h"
#include "MbsfnFrameProcessor.h"
#include "MeasurementFileWriter.h"
#include "Phy.h"
#include "RestHandler.h"
#include "Rrc.h"
#include "Version.h"
#include "spdlog/async.h"
#include "spdlog/spdlog.h"
#include "spdlog/sinks/syslog_sink.h"
#include "srslte/srslte.h"
#include "srslte/upper/pdcp.h"
#include "srslte/upper/rlc.h"
#include "thread_pool.hpp"

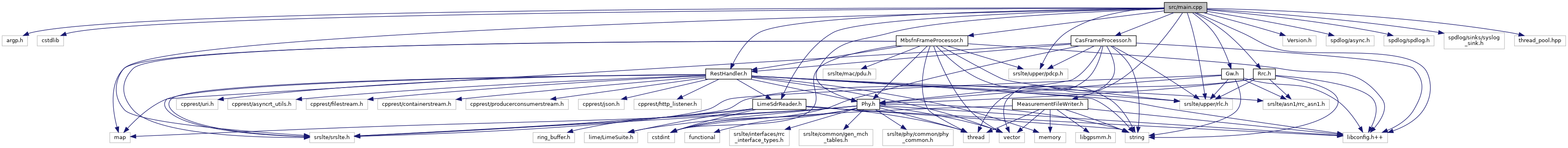

Include dependency graph for main.cpp:

Go to the source code of this file.

Classes
struct	arguments
	Holds all options passed on the command line. More...

Functions
void	set_params (const std::string &ant, unsigned fc, double g, unsigned sr, unsigned bw)
	Set new SDR parameters and initialize resynchronisation. More...
auto	main (int argc, char **argv) -> int
	Main entry point for the program. More...

Variables
void(*	argp_program_version_hook )(FILE *, struct argp_state *) = print_version
const char *	argp_program_bug_address = "Austrian Broadcasting Services <obeca@ors.at>"

Detailed Description

Contains the program entry point, command line parameter handling, and the main runloop for data processing.

Definition in file main.cpp.

Function Documentation

main()

auto main	(	int	argc,
		char **	argv
	)		-> int

Main entry point for the program.

Parameters

argc	Command line agument count
argv	Command line arguments

Returns

0 on clean exit, -1 on failure

Definition at line 212 of file main.cpp.

                                        {
  struct arguments arguments;
  /* Default values */
  arguments.config_file = "/etc/rp.conf";
  arguments.sample_file = nullptr;
  arguments.write_sample_file = nullptr;
  argp_parse(&argp, argc, argv, 0, nullptr, &arguments);

  // Read and parse the configuration file
  try {
    cfg.readFile(arguments.config_file);
  } catch(const FileIOException &fioex) {
    spdlog::error("I/O error while reading config file at {}. Exiting.", arguments.config_file);
    exit(1);
  } catch(const ParseException &pex) {
    spdlog::error("Config parse error at {}:{} - {}. Exiting.",
        pex.getFile(), pex.getLine(), pex.getError());
    exit(1);
  }

  // Set up logging
  std::string ident = "rp";
  auto syslog_logger = spdlog::syslog_logger_mt("syslog", ident, LOG_PID | LOG_PERROR);

  spdlog::set_level(
      static_cast<spdlog::level::level_enum>(arguments.log_level));
  spdlog::set_pattern("[%H:%M:%S.%f %z] [%^%l%$] [thr %t] %v");

  spdlog::set_default_logger(syslog_logger);
  spdlog::info("OBECA rp v{}.{}.{} starting up", VERSION_MAJOR, VERSION_MINOR, VERSION_PATCH);


  // Init and tune the SDR
  spdlog::info("Initialising LimeSDR");
  LimeSdrReader lime(cfg);

  if (!lime.init(0, arguments.sample_file, arguments.write_sample_file)) {
    spdlog::error("Failed to initialize I/Q data source.");
    exit(1);
  }

  cfg.lookupValue("sdr.search_sample_rate_hz", sample_rate);
  search_sample_rate = sample_rate;
  cfg.lookupValue("sdr.center_frequency_hz", frequency);
  cfg.lookupValue("sdr.normalized_gain", gain);
  cfg.lookupValue("sdr.antenna", antenna);

  if (!lime.tune(frequency, sample_rate, bandwidth, gain, antenna)) {
    spdlog::error("Failed to set initial center frequency. Exiting.");
    exit(1);
  }

  srslte_verbose = arguments.log_level == 1 ? 2 : 0;
  srslte_use_standard_symbol_size(true);

  // Create a thread pool for the frame processors
  unsigned thread_cnt = 4;
  cfg.lookupValue("phy.threads", thread_cnt);
  int phy_prio = 10;
  cfg.lookupValue("phy.thread_priority_rt", phy_prio);
  thread_pool pool{ thread_cnt + 1, phy_prio };

  // Elevate execution to real time scheduling
  struct sched_param thread_param = {};
  thread_param.sched_priority = 20;
  cfg.lookupValue("phy.main_thread_priority_rt", thread_param.sched_priority);

  spdlog::info("Raising main thread to realtime scheduling priority {}", thread_param.sched_priority);

  int error = pthread_setschedparam(pthread_self(), SCHED_RR, &thread_param);
  if (error != 0) {
    spdlog::error("Cannot set main thread priority to realtime: {}. Thread will run at default priority.", strerror(error));
  }

  bool enable_measurement_file = false;
  cfg.lookupValue("measurement_file.enabled", enable_measurement_file);
  MeasurementFileWriter measurement_file(cfg);

  // Create the layer components: Phy, RLC, RRC and GW
  Phy phy(
      cfg,
      std::bind(&LimeSdrReader::getSamples, &lime, _1, _2, _3),  // NOLINT
      arguments.file_bw * 5,
      arguments.override_nof_prb);

  phy.init();

  srslte::pdcp pdcp(nullptr, "PDCP");
  srslte::rlc rlc("RLC");
  srslte::timer_handler timers;

  Rrc rrc(cfg, phy, rlc);
  Gw gw(cfg, phy);
  gw.init();

  rlc.init(&pdcp, &rrc, &timers, 0 /* RB_ID_SRB0 */);
  pdcp.init(&rlc, &rrc,  &gw);

  auto srs_level = srslte::LOG_LEVEL_WARNING;
  switch (arguments.srs_log_level) {
    case 0: srs_level = srslte::LOG_LEVEL_DEBUG; break;
    case 1: srs_level = srslte::LOG_LEVEL_INFO; break;
    case 2: srs_level = srslte::LOG_LEVEL_WARNING; break;
    case 3: srs_level = srslte::LOG_LEVEL_ERROR; break;
    case 4: srs_level = srslte::LOG_LEVEL_NONE; break;
  }

  // Configure srsLTE logging
  srslte::log_ref rlc_log = srslte::logmap::get("RLC");
  rlc_log->set_level(srs_level);
  rlc_log->set_hex_limit(128);

  srslte::log_ref mac_log = srslte::logmap::get("MAC");
  mac_log->set_level(srs_level);
  mac_log->set_hex_limit(128);

  state_t state = searching;

  // Create the RESTful API handler
  std::string uri = "http://0.0.0.0:3000/rp-api/";
  cfg.lookupValue("restful_api.uri", uri);
  spdlog::info("Starting RESTful API handler at {}", uri);
  RestHandler rest_handler(cfg, uri, state, lime, phy, set_params);

  // Initialize one CAS and thered_cnt MBSFN frame processors
  CasFrameProcessor cas_processor(cfg, phy, rlc, rest_handler);
  if (!cas_processor.init()) {
    spdlog::error("Failed to create CAS processor. Exiting.");
    exit(1);
  }

  std::vector<MbsfnFrameProcessor*> mbsfn_processors;
  for (int i = 0; i < thread_cnt; i++) {
    auto p = new MbsfnFrameProcessor(cfg, rlc, phy, mac_log, rest_handler);
    if (!p->init()) {
      spdlog::error("Failed to create MBSFN processor. Exiting.");
      exit(1);
    }
    mbsfn_processors.push_back(p);
  }

  // Start receiving sample data
  lime.start();

  uint32_t tti = 0;

  uint32_t measurement_interval = 5;
  cfg.lookupValue("measurement_file.interval_secs", measurement_interval);
  measurement_interval *= 1000;
  uint32_t tick = 0;

  // Initial state: searching a cell
  state = searching;

  // Start the main processing loop
  for (;;) {
    if (state == searching) {
      if (restart) {
        lime.stop();
        sample_rate = search_sample_rate;  // sample rate for searching
        lime.tune(frequency, sample_rate, bandwidth, gain, antenna);
        lime.start();
      }
      // In searching state, clear the receive buffer and try to find a cell at the configured frequency and synchronize with it
      restart = false;
      lime.clear_buffer();
      bool cell_found = phy.cell_search();
      if (cell_found) {
        // A cell has been found. We now know the required number of PRB = bandwidth of the carrier. Set the approproiate
        // sample rate...
        cas_nof_prb = mbsfn_nof_prb = phy.nr_prb();
        unsigned new_srate = srslte_sampling_freq_hz(cas_nof_prb);
        spdlog::info("Setting sample rate {} Mhz for {} PRB / {} Mhz channel width", new_srate/1000000.0, phy.nr_prb(),
            phy.nr_prb() * 0.2);
        lime.stop();

        bandwidth = (cas_nof_prb * 200000) * 1.2;
        lime.tune(frequency, new_srate, bandwidth, gain, antenna);
        lime.start();
        spdlog::debug("Synchronizing subframe");
        // ... and move to syncing state.
        state = syncing;
      } else {
        sleep(1);
      }
    } else if (state == syncing) {
      // In syncing state, we already know the cell we want to camp on, and the SDR is tuned to the required
      // sample rate for its number of PRB / bandwidth. We now synchronize PSS/SSS and receive the MIB once again
      // at this sample rate.
      unsigned max_frames = 200;
      bool sfn_sync = false;
      while (!sfn_sync && max_frames-- > 0) {
        sfn_sync = phy.synchronize_subframe();
      }

      if (max_frames == 0 && !sfn_sync) {
        // Failed. Back to square one: search state.
        spdlog::warn("Synchronization failed. Going back to search state.");
        state = searching;
        sleep(1);
      }

      if (sfn_sync) {
        // We're locked on to the cell, and have succesfully received the MIB at the target sample rate.
        spdlog::info("Decoded MIB at target sample rate, TTI is {}. Subframe synchronized.", phy.tti());

        // Set the cell parameters in the CAS and MBSFN processors
        cas_processor.set_cell(phy.cell());

        for (int i = 0; i < thread_cnt; i++) {
          mbsfn_processors[i]->unlock();
        }

        // Get the initial TTI / subframe ID (= system frame number * 10 + subframe number)
        tti = phy.tti();
        // Reset the RRC
        rrc.reset();

        // Ready to receive actual data. Go to processing state.
        state = processing;
      }
    } else {  // processing
      int mb_idx = 0;
      while (state == processing) {
        tti = (tti + 1) % 10240; // Clamp the TTI
        if (tti%40 == 0) {
          // This is subframe 0 in a radio frame divisible by 4, and hence a CAS frame.
          // Get the samples from the SDR interface, hand them to a CAS processor, and start it
          // on a thread from the pool.
          if (!restart && phy.get_next_frame(cas_processor.rx_buffer(), cas_processor.rx_buffer_size())) {
            spdlog::debug("sending tti {} to regular processor", tti);
            pool.push([ObjectPtr = &cas_processor, tti] {
                ObjectPtr->process(tti);
                });

            // Set constellation diagram data and rx params for CAS in the REST API handler
            rest_handler._ce_values = std::move(cas_processor.ce_values());
            rest_handler._pdsch.SetData(cas_processor.pdsch_data());
            rest_handler.add_cinr_value(cas_processor.cinr_db());

            if (phy.nof_mbsfn_prb() != mbsfn_nof_prb)
            {
              mbsfn_nof_prb = phy.nof_mbsfn_prb();
              // Adjust the sample rate to fit the wider MBSFN bandwidth
              unsigned new_srate = srslte_sampling_freq_hz(mbsfn_nof_prb);
              spdlog::info("Setting sample rate {} Mhz for MBSFN with {} PRB / {} Mhz channel width", new_srate/1000000.0, mbsfn_nof_prb,
                  mbsfn_nof_prb * 0.2);
              lime.stop();

              bandwidth = (mbsfn_nof_prb * 200000) * 1.2;
              lime.tune(frequency, new_srate, bandwidth, gain, antenna);
              lime.start();
              spdlog::debug("Synchronizing subframe after PRB extension");
              // ... and move to syncing state.
              phy.set_cell();
              cas_processor.set_cell(phy.cell());
              state = syncing;
            }
          } else {
            // Failed to receive data, or sync lost. Go back to searching state.
            lime.stop();
            sample_rate = search_sample_rate;  // sample rate for searching
            lime.tune(frequency, sample_rate, bandwidth, gain, antenna);
            lime.start();
            rrc.reset();
            phy.reset();

            sleep(1);
            state = searching;
          }
        } else {
          // All other frames in FeMBMS dedicated mode are MBSFN frames.
          spdlog::debug("sending tti {} to mbsfn proc {}", tti, mb_idx);

          // Get the samples from the SDR interface, hand them to an MNSFN processor, and start it
          // on a thread from the pool. Getting the buffer pointer from the pool also locks this processor.
          if (!restart && phy.get_next_frame(mbsfn_processors[mb_idx]->get_rx_buffer_and_lock(), mbsfn_processors[mb_idx]->rx_buffer_size())) {
            if (phy.mcch_configured()) {
              // If data frm SIB1/SIB13 has been received in CAS, configure the processors accordingly
              if (!mbsfn_processors[mb_idx]->mbsfn_configured()) {
                srslte_scs_t scs;
                switch (phy.mbsfn_subcarrier_spacing()) {
                  case Phy::SubcarrierSpacing::df_15kHz:  scs = SRSLTE_SCS_15KHZ; break;
                  case Phy::SubcarrierSpacing::df_7kHz5:  scs = SRSLTE_SCS_7KHZ5; break;
                  case Phy::SubcarrierSpacing::df_1kHz25: scs = SRSLTE_SCS_1KHZ25; break;
                }
                auto cell = phy.cell();
                cell.nof_prb = cell.mbsfn_prb;
                mbsfn_processors[mb_idx]->set_cell(cell);
                mbsfn_processors[mb_idx]->configure_mbsfn(phy.mbsfn_area_id(), scs);
              }
              pool.push([ObjectPtr = mbsfn_processors[mb_idx], tti] {
                ObjectPtr->process(tti);
              });
            } else {
              // Nothing to do yet, we lack the data from SIB1/SIB13
              // Discard the samples and unlock the processor.
              mbsfn_processors[mb_idx]->unlock();
            }
          } else {
            // Failed to receive data, or sync lost. Go back to searching state.
            spdlog::warn("Synchronization lost while processing. Going back to searching state.");
            lime.stop();
            sample_rate = search_sample_rate;  // sample rate for searching
            lime.tune(frequency, sample_rate, bandwidth, gain, antenna);
            lime.start();

            state = searching;
            sleep(1);
            rrc.reset();
            phy.reset();
          }
          mb_idx = static_cast<int>((mb_idx + 1) % thread_cnt);
        }

        tick++;
        if (tick%measurement_interval == 0) {
          // It's time to output rx info to the measurement file and to syslog.
          // Collect the relevant info and write it out.
          std::vector<std::string> cols;

          spdlog::info("CINR {:.2f} dB", rest_handler.cinr_db() );
          cols.push_back(std::to_string(rest_handler.cinr_db()));

          spdlog::info("PDSCH: MCS {}, BLER {}, BER {}",
              rest_handler._pdsch.mcs,
              ((rest_handler._pdsch.errors * 1.0) / (rest_handler._pdsch.total * 1.0)),
              rest_handler._pdsch.ber);
          cols.push_back(std::to_string(rest_handler._pdsch.mcs));
          cols.push_back(std::to_string(((rest_handler._pdsch.errors * 1.0) / (rest_handler._pdsch.total * 1.0))));
          cols.push_back(std::to_string(rest_handler._pdsch.ber));

          spdlog::info("MCCH: MCS {}, BLER {}, BER {}",
              rest_handler._mcch.mcs,
              ((rest_handler._mcch.errors * 1.0) / (rest_handler._mcch.total * 1.0)),
              rest_handler._mcch.ber);

          cols.push_back(std::to_string(rest_handler._mcch.mcs));
          cols.push_back(std::to_string(((rest_handler._mcch.errors * 1.0) / (rest_handler._mcch.total * 1.0))));
          cols.push_back(std::to_string(rest_handler._mcch.ber));

          auto mch_info = phy.mch_info();
          int mch_idx = 0;
          std::for_each(std::begin(mch_info), std::end(mch_info), [&cols, &mch_idx, &rest_handler](Phy::mch_info_t const& mch) {
              spdlog::info("MCH {}: MCS {}, BLER {}, BER {}",
                  mch_idx,
                  mch.mcs,
                  (rest_handler._mch[mch_idx].errors * 1.0) / (rest_handler._mch[mch_idx].total * 1.0),
                  rest_handler._mch[mch_idx].ber);
              cols.push_back(std::to_string(mch_idx));
              cols.push_back(std::to_string(mch.mcs));
              cols.push_back(std::to_string((rest_handler._mch[mch_idx].errors * 1.0) / (rest_handler._mch[mch_idx].total * 1.0)));
              cols.push_back(std::to_string(rest_handler._mch[mch_idx].ber));

              int mtch_idx = 0;
              std::for_each(std::begin(mch.mtchs), std::end(mch.mtchs), [&mtch_idx](Phy::mtch_info_t const& mtch) {
                spdlog::info("    MTCH {}: LCID {}, TMGI 0x{}, {}",
                  mtch_idx,
                  mtch.lcid,
                  mtch.tmgi,
                  mtch.dest);
                mtch_idx++;
                  });
                mch_idx++;
              });
          spdlog::info("-----");
          if (enable_measurement_file) {
            measurement_file.WriteLogValues(cols);
          }
        }
      }
    }
  }

  // Main loop ended by signal. Free the MBSFN processors, and bail.
  for (int i = 0; i < thread_cnt; i++) {
    delete( mbsfn_processors[i] );
  }
exit:
  return 0;
}

set_params()

void set_params	(	const std::string &	ant,
		unsigned	fc,
		double	g,
		unsigned	sr,
		unsigned	bw
	)

Set new SDR parameters and initialize resynchronisation.

This function is used by the RESTful API handler to modify the SDR params.

Parameters

ant	Name of the antenna input (For LimeSDR Mini: LNAW, LNAL)
fc	Center frequency to tune to (in Hz)
gain	Total system gain to set [0..1]
sr	Sample rate (in Hz)
bw	Low pass filter bandwidth (in Hz)

Definition at line 191 of file main.cpp.

                                                                                       {
  sample_rate = sr;
  frequency = fc;
  bandwidth = bw;
  antenna = ant;
  if (g > 1) { g = 1; }
  if (g < 0) { g = 0; }
  gain = g;
  spdlog::info("RESTful API requesting new parameters: fc {}, bw {}, rate {}, gain {}, antenna {}",
      frequency, bandwidth, sample_rate, gain, antenna);

  restart = true;
}
